- Published: 01 March 2021
Paper-based PCR method development, validation and application for microbial detection
- Amruta Patil-Joshi 1 ,
- B. E. Rangaswamy 1 &
- Anjali Apte-Deshpande 2
Journal of Genetic Engineering and Biotechnology volume 19 , Article number: 37 ( 2021 ) Cite this article
The analysis of the quality of food is important to protect humans from food-borne or food-based illnesses caused by pathogens, such as bacteria, fungi, viruses, and protozoa. Rapid identification of these pathogens is critical to ensure food safety. Various detection and identification strategies exist; however, they are laborious and time consuming and hence the detection takes longer time. The aim of this study was to develop the specific and fast method for the detection of contaminants in milk.
In this study, we have developed a simple paper-based PCR method with minimum sample preparation process. The 16S rDNA universal primers were used for the detection of bacterial contaminants. LacZ primers were used for coliform detection which causes serious illness and hence their detection is crucial. ITS region primers were used for fungal detection. The most unique thing about this study is use of Whatman paper no. 1 as sample carrier material. We developed and validated the paper-based PCR method and used it for the detection of microbes and coliforms using milk as a representative sample.
We evaluated this method for its suitability in the detection of contaminant microbes using different milk samples. The paper-based method could successfully detect contaminants in the milk samples and the results were comparable to the traditional microbial detection method. The traditional microbiological method takes at least 18–20 h for detecting the presence of microbes in any sample but the developed paper-based PCR method can confirm the microbial presence in 2–3 h. This is very promising especially in the testing where sample sterility is crucial.
The foodborne pathogens can enter through contaminated and undercooked food. This can lead to serious illnesses in short duration and sometimes it can be fatal. Hence, it is important to detect the presence of pathogens in the food and water before it enters the body to cause a serious problem [ 1 ]. Traditionally, identification of the most microbial pathogens in food involves enrichment of the cultures, cultivation on selective media, and ultimately a series of biochemical tests to identify the organisms. Such standard microbiological techniques are slow, laborious, and often require several days, even weeks, to be performed. Enrichment protocols also may fail to detect strains of bacteria present in the food if they are at low levels. A closer observation at methods available for the detection of organisms like total coliform and E. coli reveal that, majority of these methods have incubation at 37 °C for 24 h to obtain the results. Hence, researchers are exploring various fast detection techniques. Recently, scientists have worked on faster, more specific, less expensive, and highly sensitive methods to detect and identify microbial pathogens in the food samples. A study by Batule et al. [ 2 ] has even focused on a paper-based rapid method for extraction of mitochondrial DNA from processed meat. Paper-based detection system has been used by scientists for many years. Filter paper was first used as a scientific tool in 1815 by the Swedish chemist Jons Berzelius. In the 1940s, Heatley described the use of filter paper for incorporating antimicrobial solutions in Oxford, giving rise to antibiotic susceptibility disc testing [ 3 ].
Several reports indicate polymerase chain reaction (PCR) as a promising new diagnostic method to detect food borne pathogens [ 1 , 4 , 5 , 6 ]. Most of the paper-based biosensors use the antigen-antibody interactions to detect the target analytes of interest in water, soil, urine, blood, or saliva samples [ 7 , 8 , 9 , 10 , 11 , 12 , 13 , 14 , 15 ]. Qi et al. [ 16 ] has in fact developed a paper-based device for the detection of antigen using molecular imprinting without the need of antibody. Applications built on paper-based sensing technology are numerous ranging from testing of blood samples for infectious diseases, testing of grains in agriculture to testing of chemical contaminants in water and soil [ 12 , 13 , 14 , 15 , 17 , 18 , 19 ]. Truong et al. [ 20 ] used paper-based scaffolds for culturing mammalian cells and they further used qPCR for to quantify the breast cancer cells in these scaffolds. Fobel et al. [ 21 ] developed a paper-based microfluidic device to detect presence/absence of bacteria using chromogenic substrates. The bacteria in water samples are pre-concentrated using antibody-coated immune-magnetic nanoparticles and then tested with the paper-based microfluidic device. Similarly, Lin et al. [ 22 ] recently showed in their study that a PUA cured paper-based device can potentially detect microbes present in some aggressive liquids. Molina et al. [ 23 ] used a different strategy for differential identification of bacteria with the aid of multiplex PCR. Oligonucleotide primers were designed to ensure the specificity for the detection of E. coli and total coliforms in single assay. These genetic methods provide results in lesser time with excellent specificity. However, these genetic methods require high-end, expensive instruments and/or sensors. Also, these methods require more time in sample preparation before testing.
The goal of this study was to optimize a direct paper-based PCR technique for the detection of bacteria, coliforms, and fungi from food samples without the DNA extraction and time-consuming sample preparation process. To establish the proof of concept for this technique, PCR-based detection method development and optimization was done using the 16S rDNA gene, β-galctosidase gene, and ITS gene. These are the most common genetic markers used to study bacteria, coliform, and fungi, respectively. The 16S rDNA gene consists of conserved and variable areas. The conserved regions are targeted by prevalent primers for the detection of the presence of microorganisms in a given pattern, while the variable regions are targeted for the identity of genus or species [ 24 ]. The current work is a proof of concept to establish direct amplification of 16S rDNA, β-galctosidase gene, and ITS gene from a sample carried on a Whatman paper to evaluate the presence of microbes without extraction of genomic DNA. Known positive-control and negative control were run with each PCR amplification.
E. coli (ATCC8739) Staphylococcus aureus (ATCC25923), Salmonella typhi (ATCC23564), Klebsiella pneumoniae (ATCC), Psudomonas aeroginosa (ATCC9027), and Bacillus subtilis (ATCC6633), Candida albicans (ATCC10231) were procured from NCCS, Pune.
Media and reagents
PCR reaction components like Taq polymerase, buffer, and dNTPs were from Invitrogen. Whatman filter paper no. 1 was from GE Healthcare Life Sciences. One hundred base pair ladder was procured from Genie, and Luria–Bertani (LB) agar components, MacConkey agar (MA), and potato dextrose agar (PDA) were procured from Himedia.
Bacterial genomic dna extraction.
Genomic DNAs (gDNA) of E. coli , S. aureus . and C. albicans were isolated using QIAamp DNA Mini Kit from Qiagen following the protocol recommended by the manufacturer. Additionally, an isolated colonies of the strains mentioned above were picked up from LB and PDA agar plates. Colonies were re-suspended in 25 μL of water in distinct tubes. These tubes were kept in a boiling water bath to lyse the cells. The boiled cell suspension was spun down and the supernatant containing the gDNA was used as a template. The gDNA extracted using both the above methods were used as a template in the PCR.
Two sets of universal primers with the following sequences were synthesized (Sigma) for amplification of the 16S rDNA gene. Set 1: F1: 5′ACT CCT ACG GGA GGC AGC AGT 3′, R1: 5′TCA CCG GCC GTG TGT ACA AG-3′ with amplicon size of 1086 bp [ 17 ] Set 2: F2: 5′GTG TAG CGG TGA AAT GCG 3′, R2: 5′ACG GGC GGT GTG TAC AA3′ with amplicon size of 709 bp [ 25 ]. For fungal detection, ITS primers FP-5′TCC GTA GGT GAA CCT GCG G3′ and RP-5′TCC TCC GCT TAT TGA TAT GC 3′ [ 26 ] with amplicon size of 500 bp and for coliform detection, primers LacZ3F-5′′TTG AAA ATG GTC TGC TGC TG 3′′ and LacZ3R-5′′ TAT TGG CTT CAT CCA CCA CA 3′′ [ 23 ] with amplicon size of 234 bp were used. Primers based on the LacZ gene have been used for the detection of coliforms because conventional coliform monitoring methods are based on the expression product (beta galactosidase) of this gene [ 27 , 28 ].
Annealing temperature optimization
To evaluate the optimal annealing temperature for all primer sets mentioned in the above section, a gradient PCR program was set up in thermal cycler with an annealing temperature range of 55–58 °C. The PCR program was set as, 94 °C for 7 min, followed by 35 cycles of denaturation at 94 °C for 30 s, annealing 55–58 °C for 1 min, extension at 72 °C for 30 s, followed by final extension at 72 °C for 7 min. As a model organism, a single colony of E. coli , as well as S. aureus and Candida albicans strain were suspended in 20 μL of sterile water separately. Colony suspension was boiled for 7 min at 100 °C; it was spun and clear supernatant was spotted on pre-sterilized Whatman filter paper no. 1, and the paper was dipped in the master mix having all PCR components. This tube was placed in thermal cycler and the PCR program was run as mentioned above. The annealing was carried out at 55, 57, and 58 °C along with optimal concentrations of PCR reagents as 25 μM of each dNTP, 0.25 μM each primer, 0.5 U Taq polymerase, and 1× buffer. The amplicon was visualized with the use of 2% agarose gel, because of LacZ amplicon size was 234 bp and ITS amplicon size was 500 bp. The annealing temperature range mentioned above is tried for amplification of all three genes.
Spotting of culture/sample on Whatman no. 1 paper
During the course of this study, Whatman paper no. 1 was used as a carrier source for the culture/sample. The paper was cut into desired size squares (1 × 1, 2 × 2, or 5 × 5 mm). These squares were wrapped in aluminum foil and were sterilized by steam sterilization using autoclave. If colony suspension is to be spotted on this paper, the colony suspension was prepared by dipping one colony in sterile water and the suspension was boiled for 7 min and then specific amount (2 uL/5 uL) of suspension was spotted on the sterilized paper square under aseptic condition. The paper was allowed to dry under aseptic condition and then was directly dipped in the PCR master mix. The PCR tube carrying this paper in the master mix was placed in the thermal cycle for further amplification. The experimental design is as depicted in Fig. 1 .
Schematic illustration of the developed Paper based PCR method
When milk sample was spotted on the paper, same methodology mentioned above was followed, except the milk sample is boiled for 7 min instead of colony suspension. Colony suspension served as a representation of the sample during method development. When a specific sample like milk/water/juice needs to be tested for microbial load, it can be directly spotted on the paper without isolation/enrichment of bacteria from these sources.
Bacterial culture volume and Whatman paper size optimization for paper-based PCR
As the paper-based PCR method for amplification of the 16S rDNA gene, β-gal, and ITS gene was established using Whatman filter paper no.1, it was important to optimize the lowest volume of bacterial culture that is sufficient to amplify the respective genes. Since the paper was directly dipped in 25 μL of PCR master mix in a PCR tube, there was a limitation of paper size to be used and hence the volume of culture accommodated on it. Hence 2, 3, and 5 μL of culture was spotted on the paper with dimensions, 1 mm × 1 mm, 3 mm × 3 mm, and 5 mm × 5 mm, respectively. E. coli , S. aureus , and C. albicans colony suspensions were prepared in sterile water. This suspension was directly spotted on three independent pre-sterilized small strips of Whatman filter paper no.1 of sizes mentioned earlier. The strips were allowed to air dry in LAFU and were directly dipped in 25 μL of PCR master mix and the amplification and detection were carried out. Standard colony PCR of the same culture using direct culture supernatant as a source of genomic DNA was also carried out along with this reaction as a positive control.
The16S rDNA gene is a housekeeping gene for all the bacteria, both for Gram-positive and Gram-negative. To ensure the robustness of the paper-based PCR to detect this gene, various Gram-positive and Gram-negative bacterial colony suspensions were prepared, and were spotted on pre-sterilized Whatman filter paper no. 1 as mentioned earlier. The bacteria used for this study were Staphylococcus aureus , Klebsiella pneumoniae , Salmonella typhi , and Bacillus subtilis sp. Each of these cultures was streaked on a sterile Luria–Bertani agar plate to achieve a single isolated colony. A single colony of each of these cultures was picked up and suspended in 20 μL of sterile water. Two microliters of each suspension was spotted on pre-sterilized independent Whatman filter paper no. 1 on 1 mm × 1 mm size strips and the strips were air-dried in LAFU. These strips were dipped in the master mix, and PCR condition was carried out as mentioned earlier in the case of annealing temperature optimization section, and the annealing temperature used for the amplification of all the genes was 57 °C. The experiment was carried out with F2/R2 primer set for 16S rDNA amplification.
Master mix volume variation
As the paper-based PCR method for amplification of the 16S rDNA gene, β-gal, and ITS gene was established using Whatman filter paper no.1, it was important to optimize the PCR master mix volume to check its effect on amplicon. Colony suspension was prepared in sterile water. These suspensions were directly spotted on pre-sterilized small strips of Whatman filter paper no.1 in 2 μL of volume. The strips were allowed to air dry in LAFU and were directly dipped in 25 μL and 50 μL of PCR master mix. The amplification of the gene and the detection of amplicon were carried out. Standard colony PCR of the same culture was also carried out along with this reaction as a positive control. Method robustness was also checked by inter-day and intra-day experimental set up as well as analyst variation (data not shown).
Specificity of primers for 16s rDNA, LacZ3, and ITS regions
Confirming the specificity of 16S rDNA primers for the detection of all bacteria by using established paper-based PCR method was important. The cultures used for this study were, E. coli and Candida albicans because C. albicans would not give amplification of 16S rDNA region as it is absent in the genome. Two microliters of each suspension was spotted on sterile 1 mm×1 mm size Whatman no.1 paper squares and was allowed to air dry in aseptic conditions. The paper was then added to the master mix, and the PCR was carried out as before. Specificity of LacZ3 primers for the detection of coliforms was evaluated using both coliform ( E. coli .) and non-coliform ( S. typhi .) cultures. Respective bacterial suspensions were spotted on the paper as mentioned earlier and the paper was added to the master mix. The PCR was carried out as mentioned above. Specificity of ITS primers for the detection of fungi was assessed by using cultures of Candida albicans and E. coli. because of E. coli. genome does not carry ITS region and hence should not give amplification with ITS primers. Two microliters of each suspension was spotted on sterile 1 mm × 1 mm size Whatman no.1 paper squares and was allowed to air dry in aseptic conditions. The paper was added to the master mix. The methodology of spotting cultures and PCR amplification was same as mentioned earlier. Post amplification, the amplified product was loaded on 2% agarose gel having ethidium bromide and the amplicon was visualized on UV transilluminator.
Evaluation of paper-based PCR method for the detection of contaminants in milk samples
The applicability of the developed paper-based PCR method for the detection of bacteria and coliforms was tested with different sources of milk. The milk sources used were cow milk from local dairy, buffalo milk from local dairy, pre-packed Amul milk, and pre-packed Gokul milk from Pune, Maharashtra.
In this study, we compared two methods viz. traditional microbiological method and developed paper-based PCR method (molecular biology-based method). In traditional microbiological method, we followed the process mentioned by Miles and Mishra [ 29 ] to detect the total bacterial contaminants and their count by the colony formation unit per mL (CFU/mL). Samples were serially diluted with 10-fold dilutions up to10 −6 and were spotted on LB agar plates as mentioned in the article by Miles and Mishra [ 29 ]. The CFU/mL of each sample was calculated as per microbial method detection.
Detection of microbes in milk by paper-based PCR method
Twenty microliters of milk sample was transferred into sterile tube and boiled at 100 °C for 7 min. Contents were spun down and 2 μL supernatant of respective milk sample was spotted on 1 mm × 1 mm size of Whatman paper no. 1 under sterile condition. This paper was dried in LAFU. Then dried paper was dipped into PCR master mix tube. PCR was carried out with each selected milk source. Both 16S rDNA and LacZ3 primers were used in the PCR for the detection of bacteria and coliforms. A negative control reaction was also set up. Post amplification, the amplified products were loaded on 2% agarose gel having ethidium bromide and were visualized on a UV transilluminator
Amplification of 16S rDNA, LacZ3, and ITS genes with selected primers using colony suspension
The purpose of the paper-based PCR method was mainly to detect bacterial presence directly from the sample without the requirement of bacterial genomic DNA extraction. It was therefore important to ensure if the selected primers can give desired amplicon from cell suspension and if it is of the same size and specificity when genomic DNA is used as template. As is evident in Fig. 2 , both extracted genomic DNA and colony suspension were used as template in PCR for amplification all three genes and the amplicons were compared with 100 bp ladder. Colony suspension could give amplification for all three genes. This data indicated that amplification does not affect the type of template source.
16s rDNA, LacZ3, and ITS region amplification using genomic DNA and colony as a template. (L)-100 bp Ladder. a 16s r-DNA: lane 1—100 bp ladder, lane 2—genomic DNA PCR, lane 3—colony PCR, lane 4—negative control. b β-galactocidase: lane 1—100 bp ladder, lane 2—genomic DNA PCR, lane 3—colony PCR, lane 4—negative control. c ITS: lane 1—100 bp ladder, lane 2—genomic DNA PCR, lane 3—colony PCR, lane 4—negative control
Primer annealing temperature optimization for amplification of 16S rDNA, LacZ3, and ITS genes
Annealing temperature for all three sets of primers was optimized by setting up a gradient PCR reaction with the temperatures 56, 57, and 58 °C. Colony suspension was spotted on the paper which served as a template DNA. As is seen in Fig. 3 , good intensity amplicon was visible in PCR when the primer annealing temperature was 57 °C for amplification of all three genes. S. aureus colony suspension served as template for 16S rDNA detection whereas E. coli and C. albicans colony suspensions were used for detection of LacZ3 and ITS genes respectively.
Annealing temperature optimization. a 16s r-DNA amplification (S. aureus CS): lane 1—100 bp ladder, lane 2—55 °C, lane 3—57 °C, lane 4—58 °C, lane 5—negative control. b β-galactocidase amplification using LacZ primers (E. coli. CS): lane 1—100 bp ladder, lane 2—55 °C, lane 3—57 °C, lane 4—58 °C, lane 5—negative control. c ITS amplification using ITS primers (C. albicans CS): lane 1—100bp ladder, lane 2—55 °C, lane 3—57 °C, lane 4—58 °C, lane 5—negative control. (L): 100 bp ladder
Paper size and culture volume optimization
During the development of paper-based PCR method, it was important to keep the paper size to minimal to avoid the absorption of PCR master mix when the paper is dipped in the master mix. Also, it was critical to evaluate the lowest sample volume that can still detect specific gene. As depicted in Fig. 4 , spotting of as low as 2 μL of colony suspension could detect all three genes. Hence, 2 μL culture spotted on 1 mm × 1 mm size Whatman paper no. 1 was used as template in all the future experiments.
Paper size and culture volume optimization. a 16s r-DNA: lane 1—100 bp ladder, lane 2—colony PCR, lane 3—1 mm × 1 mm size ppr with 2 μL CS, lane 4—3 mm × 3 mm size ppr with 3 μL CS, lane 5—5 mm × 5 mm size ppr with 5 μL CS, lane 6—negative control. b β-galactocidase lane 1—100 bp ladder, lane 2—colony PCR, lane 3—1 mm × 1 mm size ppr with 2 μL CS, lane 4—3 mm × 3 mm size ppr with 3 μL CS, lane 5—5 mm × 5 mm size ppr with 5 μL CS, lane 6—negative control. c ITS lane 1—100 bp ladder, lane 2—colony PCR, lane 3—1 mm × 1 mm size ppr with 2 μL CS, lane 4—3 mm × 3 mm size ppr with 3 μL CS, lane 5—5 mm × 5 mm size ppr with 5 μL CS, lane 6—negative control
Two independent reactions were set up having 25 μL and 50 μL master mix, and the same amount (2 μL) of colony suspension was spotted on filter paper and dipped in the master mix for the amplification of each gene. Both the PCR reactions gave strong amplicons (Fig. 5 ). Master mix volume did not impact the amplification. It was also evident that the same quantity of colony suspension could give result in large volume of master mix. Hence, master mix volume of 25 μL was used in future reactions.

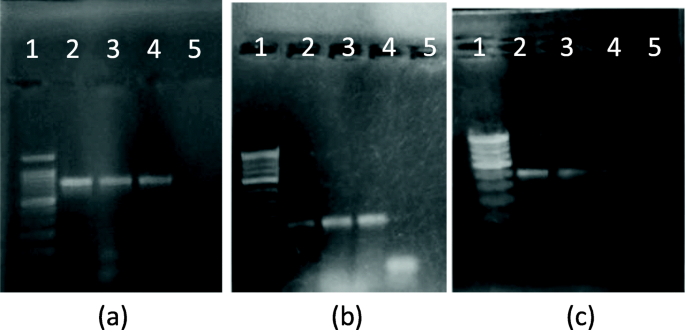

PCR master mix volume variation. a 16s r-DNA: lane 1—100 bp ladder, lane 2—colony PCR, lane 3—25 μL master mix volume, lane 4—50 μL master mix volume, lane 5—negative control. b β-galactocidase lane 1—100 bp ladder, lane 2—colony PCR, lane 3—25 μL master mix volume, lane 4—50 μL master mix volume, lane 5—negative control. c ITS: lane 1—100 bp ladder, lane 2—colony PCR, lane 3—25 μL master mix volume, lane 4—50 μL master mix volume, lane 5—negative control
Specificity of primers used for 16s rDNA, LacZ3, and ITS regions
The selected primers were evaluated for their specificity to amplify respective gene region. As is seen in Fig. 6 , all three sets of primers were highly specific as there was no non-specific amplification seen in any case.
Specificity of primers. a 16s r-DNA: lane 1—100 bp ladder, lane 2—16s rDNA with C. albicans culture, lane 3—16s rDNA with S. aureus culture, lane 4—negative control. b β-galactocidase: lane 1—100 bp ladder, lane 2—β-gal with S. typhi, lane 3—β-gal with E. coli., lane 4—negative control. c ITS: lane 1—100 bp ladder, lane 2—ITS with C. albicans., lane 3—ITS with E. coli, lane 4—negative control
Application of developed PCR method for the detection of microbial contamination in milk samples
As mentioned in the materials and methods section, 2 μL of milk samples were directly spotted on the pre-sterilized Whatman filter paper square and allowed to dry. These squares were directly dipped in PCR master mix to detect bacterial contamination by amplifying 16S rDNA gene and coliform contamination by amplifying LacZ gene. As seen in Fig. 7 , both the milk samples from local dairy could detect the presence of bacteria and coliforms as both the genes got amplified showing the respective amplicons on the gel. Similar results were obtained with milk from Gokul brand which was stored for 1 day. Interestingly, Amul milk did not show presence of coliforms as well as any other bacteria. These results perfectly matched with the data obtained through microbial analysis (CFU/mL) as mentioned in Table 1 .
Detection of microbial contaminants in milk sample by PCR. a 16s r-DNA: lane 1—100 bp ladder, lane 2—16s colony PCR (positive control), lane 3—Amul milk, lane 4—Gokul milk, lane 5—local cow milk, lane 6—local buffalo milk, lane 7—negative control. b β-galactocidase: lane 1—100 bp ladder, lane 2—β-galactocidase colony PCR (positive control), lane 3—Amul milk, lane 4—Gokul milk, lane 5—local cow milk, lane 6—local buffalo milk, lane 7—negative control
Over the last 50 years, filter paper has gained an increasingly important role as a substrate for the diagnosis and surveillance of infectious diseases. Recently, this role has gone beyond diagnosis to include detection of markers of resistance, detailed genetic or serological analysis, and monitoring of therapeutic interventions, including drug levels, vaccine-induced responses, and viral loads. Point-of-care tests are increasingly providing a key role in diagnosing and surveying infectious diseases in remote settings, and affordable microfluidics devices based on paper to diagnose infectious diseases are becoming the promising tools [ 18 ]. The focus of the current research work was to develop a PCR method for the detection of microbes directly from the sample without the need to process the sample for isolation of genomic DNA. Whatman paper no. 1 was used as a carrier matrix for the sample. Hence, various parameters like primers, annealing temperature, and culture volume were optimized. Further, the developed method was also validated for its specificity and robustness.
For the detection of bacteria, a pair of universal primer was selected from the highly conserved region of the 16S rDNA sequence. These primers amplified the region which gave the amplicon of size of 709 bp. Earlier, these primers were also used by Matsuda et al. [ 17 ] for suspected blood infections and by Liu et al. [ 30 ] for the bacterial infection in CSF. Primers for 16S rDNA amplification were also used by Sauer et al. [ 25 ] for the detection of pathogenic bacteria causing prosthetic joint infections. The authors have claimed that the primer pair is highly specific for a broad range of bacterial pathogens and can be used with a variety of clinical specimens. The aim of this study was to establish the primer pair which is suitable for amplification of 16S rDNA gene which can be used commonly for the detection of broad range of bacteria. Similarly, for the detection of fungi and coliforms primers specific for ITS and LacZ region were selected. The ITS primers make use of conserved region of the 18 s, 5.8 s, and 28 s rRNA genes to amplify the noncoding regions between them [ 26 ]. All these primers could amplify respective genes when colony suspension was used as a source of template. This step was crucial as it could avoid the sample processing step which can delay the detection as well as the processing step can impact the DNA quality. Hence, the colony suspension was used in subsequent paper-based method as template source. During the method development, the colony suspension served as a representation of sample source. Colony PCR is a very well established technique and in the current study, adding colony suspension to PCR master mix has also given expected results. While developing the PCR method where Whatman paper would serve as a carrier matrix for sample, authentic source of bacterial culture was required as a template to optimize the amplification of the selected genes. Hence, the colony suspension was spotted on the paper directly and the optimization of various parameters of PCR was done using this as a template.
For any PCR reaction, primer annealing temperature plays a critical role in ensuring the optimal amplification as well as avoiding non-specific binding. Hence, for the developed PCR reaction, it was important to optimize the annealing temperature that is suitable for all three sets of primers. The recommended annealing temperatures for 16S rDNA universal primers used in this study was 55 °C, for LacZ3 was 57 °C, and the ITS gene was 55 °C. To optimize this annealing temperature for better amplification, a gradient PCR was set up with the range 56, 57, and 58 °C. When the colony suspensions spotted on the Whatman paper no. 1 were used as a template source in PCR, good intensity amplicon was visible when the primer annealing temperature was 57 °C for all three genes. Standard colony PCR without the use of Whatman filter paper served as a positive control.
Another critical parameter that was evaluated during the development of this paper-based PCR method was the volume of culture spotted on the paper. This is important because the lowest volume of the culture required to give amplification of the gene will also reduce the size of the paper used for spotting. Larger size paper poses the problem of absorption of master mix from the tube which hampers the results of the reaction. Earlier studies by Lokur et al. [ 31 ] have also shown culture volume optimization in the paper-based PCR method for amplification of 16srDNA gene. However, the authors have not evaluated the paper size, which was unique to this study. In the current study, the paper dimension and the volume of culture were varied and the PCR reaction was set up. The amplification of 16S rDNA, LacZ3, and ITS genes could be achieved with 2 μL culture spotted on 1 mm × 1 mm size paper. Additionally, PCR master mix volume optimization studies showed that master mix volume did not impact the amplification.
As per ICH guidelines, it is crucial to establish specificity of the newly developed method for the desired end result [ 32 ]. The specificity of 16S rDNA, LacZ3, and ITS primers for the detection of bacteria, coliforms, and fungi was established. The efficiency of the developed paper-based PCR method was tested by using the method for the detection of contaminating microbes in different milk samples. These milk samples were also tested using traditional microbiological methods for the detection of contaminants. There are several methods available for counting viable bacterial cells in milk [ 33 ]. Different ISO methods are also available to quantify probiotics and fermenting microbes employed in the dairy industry [ 34 ].
In the current study, we used plate count method. Viable bacterial cell count in all the dilutions of milk sample was determined by the method described by Miles and Mishra [ 29 ]. The CFU/mL was calculated as the indicator of microbial presence in case of each milk sample (Table 1 ). As is evident from the data mentioned in Table 1 , cow and buffalo milk samples from the local diary showed significant microbial load. Additionally, milk from Gokul brand also showed presence of microbes probably because the milk was purposely stored for a day till it starts spoiling. Whereas pasteurized and cold-stored Amul milk did not show any microbial presence. None of the milk samples showed any fungal growth on Sabouraud Dextrose (SD) agar even after 48 h of incubation. However, both the types of milk from local dairy and Gokul milk showed pink colonies on MacConkey’s agar which is indicative of coliform presence. It was important to compare the above results that were obtained through known microbial methods with the developed paper-based PCR method. This was important as it would validate the developed method for the detection of microbes. Most importantly, in paper-based PCR method, there was no sample preparation required neither DNA extraction step was necessary to get the results. Important finding of this study was none of the milk protein and fat interfered with the PCR reaction although the milk was directly spotted without any prior treatment. Also, the PCR method could detect both bacterial and coliform contamination in the samples with a really small volume of 2 uL which had approximately 10 4 cells. Microbial methods would not be able to pick the contaminants at such a low cell number. Fu et al. [ 35 ] have also shown that a paper-based chip device could detect pathogens like Listeria very efficiently when CFU count was as low as 10 4 cells/mL. The microbial results usually need 24–48 h of incubation whereas the PCR takes about 2 h to give the same data. The data thus confirms that developed PCR method is absolutely comparable to the traditional microbial methods and is faster, less time consuming, and highly sensitive.
In summary, we have developed a novel paper-based PCR method for the detection of coliforms, bacterial, and fungal contamination in food samples. The method is easy to handle with no sample preparation requirement. The testing time is less about 2 to 3 h, and the method can detect as low as 200 cells. Also, the use of positive and negative controls in all our experiments excluded the possibility of false-positive and false negatives, which may lead to misinterpretation of the results.
The most promising part of the method is that no sample preparation is required and sample components are not interfering with the PCR reaction. Of course, it needs to be seen if samples with turbidity, strong color, or different pH would behave the same way. In that case, it would be very easy to collect the samples from a remote area and can be brought to testing facility with no specific transportation conditions or temperature requirements. A non-technical person also can collect the samples. The sample carrier Whatman paper no. 1 can also be disposed easily after completion of the test. The current method platform can be adapted and integrated with further developments in the detection of other bacteria and pathogens, and used not just for milk samples but many other products like potable water, wine, and juices.
Availability of data and materials
All the data generated and/or analyzed during this study are included in this published article.
Polymerase chain reaction
Potato dextrose agar
Laminar air flow unit
Internal transcribed spacer
Priyanka B, Patil RK, Dwarakanath S (2016) A review on detection methods used for foodborne pathogens. Indian J Med Res. 144:327–338
Article Google Scholar
Batule B, Seok Y, Gon-Kim M (2020) An innovative paper-based device for DNA extraction from processed meat products. Food Chem 321:126708
Wheat PF (2001) History and development of antimicrobial susceptibility testing methodology. J Antimicrob Chemother 48(Suppl 1):1–4
Mandal PK, Biswas AK, Choi K, Pal UK (2011) Methods for rapid detection of foodborne pathogens: an overview. Am J Food Technol 6:87–102
Tantawiwat S, Tansuphasiri U, Wongwit W, Wongchotigul V, Kitayaporn D (2005) Development of multiplex PCR for the detection of total coliform bacteria for Escherichia coli and clostridium perfringens in drinking wate. Southeast Asian J Trop Med Public Health 36(1):162–169
World Health Organisation (WHO) (2011) Bacteriological quality of drinking water. 4th edn. ISBN 978 92 4 154815 1
Parolo C, Merkoci A (2013) Paper-based nanobiosensors for diagnostics. Chem Soc Rev 42(2):450–457
Maheux AF, Boudreau DK, Bisson MA, Diondupont V, Bouchard S, Nkuranga M, Bergeron MG, Rodriguez MJ (2014) Molecular method for detection of total coliforms in drinking water samples. Appl Environ Microbiol 80:4074–4084
Tsen HY, Lin CK, Chi WR (1998) Development and use of 16S rRNA gene targeted PCR primers for the identification of Escherichia coli cells in water. J Appl Microbiol 85:554–560
Ram S, Vajpayee P, Shanker R (2008) Rapid culture- independent quantitative detection of enterotoxigenic Escherichia coli in surface waters by real- time PCR with molecular beacon. Environ Sci Technol 42:4577–4582
Fricker EJ, Fricker CR (1994) Application of the polymerase chain reaction to the identification of Escherichia coli and coliforms in water. Lett Appl Microbiol 19:44–46
Li Cz, Vandenberg K, Prabhulkar S, Zhu X, Schneper L, Methee K et al (2011) Paper based point-of-care testing disc for multiplex whole cell bacteria analysis. Biosens Bioelectron 26(11):4342–4348
Fobel R, Kirby AE, Ng AH, Farnood RR, Wheeler AR (2014) Paper microfluidics goes digital. Adv Mater 26(18):2838–2843
Li X, Ballerini DR, Shen W (2012) A perspective on paper-based microfluidics: current status and future trends. Biomicrofluidics 6(1):011301
Posthuma-Trumpie GA, Knorf J, van Amerongen A (2009) Lateral flow (immuno) assay: its strengths, weaknesses, opportunities and threats. A literature survey. Anal Bioanal Chem 393(2):569–582
Qi J et al (2019) The strategy of antibody-free biomarker analysis by in-situ synthesized molecularly imprinted polymers on movable valve paper-based device. Biosens Bioelectron 142:111533
Matsuda K, Iwaki K, Garcia-Gomez J, Hoffman J, Inderlied C, Mason W, Iwaki Y (2011) Bacterial identification by 16s rRNA gene pcr hybridization as a supplement to negative culture results. J Clin Microbiol 49(5):2031–2034
Martinez AW, Phillips ST, Whitesides GM, Carrilho E (2009) Diagnostics for the developing world: microfluidic paper-based analytical devices. Anal Chem 82(1):3–10
Tambekar DH, Banginwar YS (2005) Studies on potential intervention for control of water bore diseases Promotion of storage handling and serving practices of drinking water in hotels and restaurants. Pollut Res 24:371–375
Truong AS et al (2015) Tracking the Invasion of Small Numbers of Cells in Paper-Based Assays with Quantitative PCR. Anal Chem 87:11263–11270
Fobel R, Andrea EK, Ng A, Farnood R (2014) Paper microfluidics goes digital. Adv Mater 26(18).
Lin D et al (2020) Low cost fabrication of microfluidic paper-based analytical devices with water-based polyurethane acrylate and their application for bacterial detection. Sens Actuators B-Chem 303:127213
Molina F, López-Acedo E, Tabla R, Roa I, Gómez A, Rebollo JE (2015) Improved detection of Escherichia coli and coliform bacteria by multiplex PCR. BMC Biotechnol 15. Article number: 48
Hassan RM, Mervat E, Rizk H (2014) Evaluation of broad-range 16S rRNA PCR for the diagnosis of bloodstream infections: two years of experience. J Infect Dev Ctries 8(10):1252–1258
Sauer P, Gallo J, Kesselova M, Kolar M, Koukalova D (2005) Universal primers for detection of common bacterial pathogens causing prosthetic joint infection. Biomed Pap 149(2):285–288
White TJ, Bruns TD, Lee SB, Taylor JW (1990) Amplification and direct sequencing of fungal ribosomal RNA Genes for phylogenetics. PCR Protoc 315-322
Bej AK, Mccarty SC, Atlas RM (1991) Detection of coliform bacteria and Escherichia coli by multiplex polymerase chain reaction: comparison with defined substrate and plating methods for water quality monitoring. Appl Environ Microbiol 57:2429–2432
Bej AK, Mahbubani MH, Dicesare JL, Atlas RM (1991) Polymerase chain reaction- gene probe detection of microorganisms by using filter- concentrated samples. Appl Environ Microbiol 57:3529–3534
Miles AA, Misra SS, Irwin JO (1938) The estimation of the bactericidal power of the blood. From the Department of Pathology, British Postgraduate Medical School 38(6):732-749
Liu Z, Luo J, Bai Q, Ma M, Guan G, Yin H (2005) Amplification of 16s rRNA genes of anaplasma species in china for phylogenetic analysis. Vet Microbiol 107(1–2):145–148
Lokur A, Late S, Apte-Deshpande A (2018) Standardisation of paper based pcr for detection of bacteria using 16s rRNA gene. J Microbiol Biotechnol Food Sci
U.S. Food and Drug Administration Foods Program (2019) Guidelines for the validation of analytical methods for the detection of microbial pathogens in foods and feeds. Edition 3.0
Vasavada PC, White CH (1993) Developing methodology for microbiological evaluation of milk and dairy products–an introduction. Dairy Sci 76(10):3099–100
Boyer M, Combrisson J (2013) Analytical opportunities of quantitative polymerase chain reaction in dairy microbiology. Int Dairy J 30(1):45–52
Fu Y et al (2018) Integrated paper-based detection chip with nucleic acid extraction and amplification for automatic and sensitive pathogen detection. Sens Actuators B-Chem 261:288–296
Authors and affiliations.
Department of Biotechnology, BIET, Davangere, Karnataka, 577004, India
Amruta Patil-Joshi & B. E. Rangaswamy
Central Dogma Pvt Ltd., A4, Gulmohar Residency, Baner Road, Baner, Pune, Maharashtra, 411045, India
You can also search for this author in PubMed Google Scholar
APJ performed all the experiments and compiled the data; BER Ph.D. guide. AD conceived and planned the study and reviewed the final manuscript. All authors have read and approved the final manuscript.
Correspondence to Anjali Apte-Deshpande .
Ethics approval and consent to participate, consent for publication, competing interests.
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/ .
Reprints and Permissions
About this article
Cite this article.
Patil-Joshi, A., Rangaswamy, B.E. & Apte-Deshpande, A. Paper-based PCR method development, validation and application for microbial detection. J Genet Eng Biotechnol 19 , 37 (2021). https://doi.org/10.1186/s43141-020-00110-1
Received : 15 July 2020
Accepted : 25 December 2020
Published : 01 March 2021
DOI : https://doi.org/10.1186/s43141-020-00110-1
Share this article
Anyone you share the following link with will be able to read this content:
Sorry, a shareable link is not currently available for this article.
Provided by the Springer Nature SharedIt content-sharing initiative
- Milk sample
- Whatman paper
Highly cited papers in Microbiology: identification and conceptual analysis
- 1 Department of Nursing and Physiotherapy, University of Cádiz, Cádiz 11009, Spain.
- 2 Institute of Research and Innovation in Biomedical Sciences of the Province of Cádiz (INiBICA), University of Cádiz, Cádiz 11009, Spain.
- PMID: 30247554
- DOI: 10.1093/femsle/fny230
Microbiology is an area with a high research production, classified in different branches. Thus, it is difficult to identify research trends without many backgrounds. The present paper aims to apply bibliometric methods to identify the highly cited papers that contribute to the Microbiology development. Furthermore, a science mapping analysis allows discovering the main thematic areas covered by those detected papers. From the 572 153 papers (articles and reviews) indexed in the Web of Science Microbiology category (1900-2017), a total of 645 highly cited papers were detected. Concerning the main scientific producers in Microbiology, Applied and Environmental Microbiology as a journal, R. Knight from the University of Colorado (USA) as an author and the USA as a country are the most productive actors. Nevertheless, taking into account the gross domestic product per capita, China and Spain are remarkable countries. Furthermore, according to the relative priority index (RPI), Denmark, Belgium, Spain and The Netherlands are the countries that make a higher scientific effort in this field. About the co-word analysis, several important themes were detected, such as Next Generation Sequencing, Gene, Escherichia Coli or Gene Expression. Concerning these results, this work supposes a framework on which to base future research.
- Research Support, Non-U.S. Gov't
- Biomedical Research / trends*
- Microbiology / trends*
An official website of the United States government
Here’s how you know
Official websites use .gov A .gov website belongs to an official government organization in the United States.
Secure .gov websites use HTTPS A lock ( Lock A locked padlock ) or https:// means you’ve safely connected to the .gov website. Share sensitive information only on official, secure websites.
- Water Research
Microbiological Methods and Online Publications
EPA scientists have developed a variety of methods to detect, characterize and study bacteria, protozoans, viruses and coliphage. These methods are used by EPA and state and regional water quality managers to protect human health by keeping drinking water safe.
- Method 1605: Aeromonas in Finished Water by Membrane Filtration Using Ampicillin-Dextrin Agar with Vancomycin (ADA-V)
- Method 1604: Total Coliforms and Escherichia coli in Water by Membrane Filtration Using a Simultaneous Detection Technique (MI Medium)
- Method 1603: Escherichia coli (E.coli) in Water by Membrane Filtration Using Modified membrane-Thermotolerant Escherichia coli Agar (Modified mTEC)
- Method 1600: Enterococci in Water by Membrane Filtration Using membrane-Enterococcus Indoxyl-ß-D-Glucoside Agar (mEI)
- Method 1106.1: Enterococci in Water by Membrane Filtration Using membrane-Enterococcus-Esculin Iron Agar (mE-EIA)
- Method 1103.1: Escherichia coli (E. coli) in Water by Membrane Filtration Using membrane-Thermotolerant Escherichia coli Agar (mTEC)
- Improved Enumeration Methods for the Recreational Water Quality Indicators: Enterococci and Escherichia coli
- Method 1622: Cryptosporidium in Water by Filtration/IMS/FA
- Method 1623.1: Cryptosporidium and Giardia in Water by Filtration/IMS/FA
- Criteria for Evaluation of Proposed Protozoan Detection Methods
- Method 1622/1623 Cryptosporidium Report Form
- Method 1622/1623 Spiking Suspension Enumeration Form: Cryptosporidium/Giardia
- Method 1623 Giardia Report Form
- Hemacytometer Data Sheet for Cryptosporidium/Giardia
Viruses and Coliphage
- USEPA Manual of Methods for Virology
- Method 1601: Male-specific (F+) and Somatic Coliphage in Water by Two-step Enrichment Procedure
- Method 1602: Male-specific (F+) and Somatic Coliphage in Water by Single Agar Layer (SAL) Procedure
Recreational Water Publications
- The EMPACT Beaches Project: Results From a Study on Microbiological Monitoring in Recreational Waters
- Data Quality Objectives and Statistical Design Support for Development of a Monitoring Protocol for Recreational Waters
- Health-Based Monitoring of Recreational Waters: The Feasibility of a New Approach (The 'Annapolis Protocol') — 1999
- Health Effects Criteria for Marine Recreational Waters
Health Effects Criteria for Fresh Recreational Waters
Note: Sample collection for the Information Collection Rule ended in December, 1998. The following ICR publications are maintained online as informational resources.
- ICR Microbial Manual
- Information Collection Requirements Rule — Protozoan Method for Detecting Giardia Cysts and Cryptosporidium Oocysts in Water by a Fluorescent Antibody Procedure
- Information Collection Requirements Rule — Protozoa and Enteric Virus Sample Collection Procedures
- Quality Assurance/Quality Control Guidance for Laboratories Performing PCR Analyses on Environmental Samples
- Preventing Waterborne Disease: A Focus on EPA's Research
- Undergraduate open days
- Postgraduate open days
- Information for teachers
- Maps and directions
- Sport and fitness
Research Methods in Microbiology
The aim of the module is to enable students to become more familiar with some of the research methods used in microbiology. Students will be presented with a series of research problems encompassing examples from the following areas:
- microbial biotechnology
- antimicrobial resistance and drug discovery
- microbial ecology and biodiversity
Students will be specifically taught the methods in standard lecture format supported by independent study, and will also have an opportunity to see them applied in specific research contexts, through attendance at a series of workshops with components of group work.
An assessed practical will be used to illustrate some of these methods, and to allow students to become more familiar with data analysis and good scientific writing style.
By the end of the module students should be able to:
- Demonstrate and apply an advanced level of understanding of relevant methods which are used in microbiological research, by analysing and interpreting data from them, and evaluating the limitations of these methods;
- Evaluate different relevant methods and choose the appropriate ones to tackle specific scientific questions, and justify this choice;
- Identify, justify, and critically appraise the use of specific methods when they have been used in the scientific literature;
- Use appropriate methods to isolate and identify microorganisms from soil
- Analyse data and present it in a written report in appropriate academic style
1000 word practical report - 40% containing results and discussion 1 hr unseen in course test - 30% 15 minutes recorded PowerPoint presentation (group work) - 30%
Culture and collections
Schools, institutes and departments
College of arts and law.
- Birmingham Law School
- English, Drama and Creative Studies
- History and Cultures
- Language, Cultures, Art History and Music
- Philosophy, Theology and Religion
College of Medical and Dental Sciences
- Applied Health Research
- Biomedical Science
- Birmingham Medical School
- Cancer and Genomic Sciences
- Cardiovascular Sciences
- Clinical Sciences
- Graduate School
- Immunology and Immunotherapy
- Inflammation and Ageing
- Metabolism and Systems Research
- Microbiology and Infection
- Nursing and Midwifery
College of Life and Environmental Sciences
- Geography, Earth and Environmental Sciences
- Sport, Exercise and Rehabilitation Sciences
College of Engineering and Physical Sciences
- Chemical Engineering
- Computer Science
- Metallurgy and Materials
- Physics and Astronomy
College of Social Sciences
- Birmingham Business School
- Social Policy
See all schools, departments, research and professional services
- Liberal Arts and Natural Sciences
Services and facilities
- Conferences and Events
- The Exchange
- Birmingham Day Nurseries
- Guild of students
- Facilities search
- University of Birmingham School
- UoB Sport and Fitness
- Online Shop
- Freedom of Speech
- Canvas Learning Environment
- Publication Scheme
- Information for Applicants
- Freedom of information
- Charitable information
- Website feedback
- Search by keyword
- Search by citation
Page 1 of 104
Microbiota-derived short chain fatty acids in fermented Kidachi Aloe promote antimicrobial, anticancer, and immunomodulatory activities
Fermented Aloe leaf juice is a commonly used food supplement in Japan. In a previous study, fermentation of A. arborescence juice was performed and the presence of short-chain fatty acids (SCFAs) was confirmed an...
- View Full Text
Contribution of trehalose to ethanol stress tolerance of Wickerhamomyces anomalus
The ascomycetous heterothallic yeast Wickerhamomyces anomalus (WA) has received considerable attention and has been widely reported in the winemaking industry for its distinctive physiological traits and metaboli...
Multi-omics analysis of fecal samples in colorectal cancer Egyptians patients: a pilot study
Colorectal cancer (CRC) is a public health concern and the second most common disease worldwide. This is due to genetic coding and is influenced by environmental aspects, in which the gut microbiota plays a si...
Microbiota profiles in the saliva, cancerous tissues and its companion paracancerous tissues among Chinese patients with lung cancer
Despite the growing interest in the impact of the gut microbiome on cancer, the relationship between the lung microbiome and lung cancer has received limited investigation. Additionally, the composition of the...
A signaling complex of adenylate cyclase CyaC of Sinorhizobium meliloti with cAMP and the transcriptional regulators Clr and CycR
Adenylate cyclases (ACs) generate the second messenger cyclic AMP (cAMP), which is found in all domains of life and is involved in the regulation of various cell physiological and metabolic processes. In the p...
Multi-host infection and phylogenetically diverse lineages shape the recombination and gene pool dynamics of Staphylococcus aureus
Staphylococcus aureus can infect and adapt to multiple host species. However, our understanding of the genetic and evolutionary drivers of its generalist lifestyle remains inadequate. This is particularly importa...
Occurrence of Acinetobacter baumannii genomic resistance islands (AbGRIs) in Acinetobacter baumannii strains belonging to global clone 2 obtained from COVID-19 patients
The Acinetobacter baumannii genomic resistance islands (AbGRIs), which were characterized in the genome of the global clone 2 (GC2) A. baumannii contain resistance genes. Here, we aimed to determine the occurrenc...
Characterization of novel bacteriophage PSKP16 and its therapeutic potential against β-lactamase and biofilm producer strain of K2-Hypervirulent Klebsiella pneumoniae pneumonia infection in mice model
Severe infections caused by β- lactamase producers, hypervirulent Klebsiella pneumoniae (BhvKp) with K2 serotype, highlight emergency need for new therapeutic strategies against this pathogen. We aimed to assess ...
Zoonoses and emerging pathogens
Zoonoses represent a major challenge for many disciplines, including microbiology, epidemiology, veterinary, medicine and ecology. Moreover, they pose severe risks to human health and economy. In this editoria...
Antibacterial activity of exopolysaccharide produced by bee gut-resident Enterococcus sp. BE11 against marine fish pathogens
In recent years, the demand for innovative antimicrobial agents has grown, considering the growing problem of antibiotic resistance in aquaculture. Adult Apis mellifera honeybees’ gut represents an outstanding ha...
“Sharing the matrix” – a cooperative strategy for survival in Salmonella enterica serovar Typhimurium
Bacteria in nature live together in communities called biofilms, where they produce a matrix that protects them from hostile environments. The components of this matrix vary among species, with Salmonella enteric...
Crippling of Klebsiella pneumoniae virulence by metformin, N-acetylcysteine and secnidazole
The emergence of multidrug-resistant Klebsiella pneumoniae in hospitals represents a serious threat to public health. Infections caused by Klebsiella pneumoniae are widespread in healthcare institutions, mainl...
Evaluation of the Autof ms1000 mass spectrometry for rapid clinical identification of filamentous fungi
Matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) has revolutionized microbial identification. However, there is a lack of data on its performance in identifying filam...
Characteristics and potential clinical applications of the extracellular vesicles of human pathogenic Fungi
Extracellular vesicles (EVs) are a heterogeneous group of lipid membrane-enclosed compartments that contain different biomolecules and are released by almost all living cells, including fungal genera. Fungal E...
Oral microbiome homogeneity across diverse human groups from southern Africa: first results from southwestern Angola and Zimbabwe
While the human oral microbiome is known to play an important role in systemic health, its average composition and diversity patterns are still poorly understood. To gain better insights into the general compo...
Comparing antimicrobial resistant genes and phenotypes across multiple sequencing platforms and assays for Enterobacterales clinical isolates
Whole genome sequencing (WGS) of bacterial isolates can be used to identify antimicrobial resistance (AMR) genes. Previous studies have shown that genotype-based AMR has variable accuracy for predicting carbap...
Gamma rays-assisted bacterial synthesis of bimetallic silver-selenium nanoparticles: powerful antimicrobial, antibiofilm, antioxidant, and photocatalytic activities
Bimetallic nanoparticles (BNPs) has drawn a lot of attention especially during the last couple of decades. A bimetallic nanoparticle stands for a combination of two different metals that exhibit several new an...
Detection and activity of MMP-2 and MMP-9 in Leishmania amazonensis and Leishmania braziliensis promastigotes
Metalloproteinases (MMPs) are remarkable zinc-dependent endopeptidases, critical for degrading components of the extracellular matrix, thus actively influencing cell migration. Their impact on intracellular pa...
The frequency of adherence, biofilm-associated , Arginine Catabolic Mobile element genes, and biofilm formation in clinical and healthcare worker coagulase-negative staphylococci isolates
Healthcare workers may pave the way for increased infections in hospitalized patients by coagulase-negative staphylococci (CoNS). Biofilm formation and antibiotic resistance are the major problems posed by CoN...
Isolation and characterization of phosphate-solubilizing bacteria from rhizosphere of poplar on road verge and their antagonistic potential against various phytopathogens
Phosphate-solubilizing bacteria (PSB) can solubilize insoluble phosphate compounds and improve phosphate availability in soil. Road verges are important in urban landscaping, but the population structure of PS...
Mesomycoplasma ovipneumoniae from goats with respiratory infection: pathogenic characteristics, population structure, and genomic features
Mycoplasma ovipneumoniae is a critical pathogen that causes respiratory diseases that threaten Caprini health and cause economic damage. A genome-wide study of M. ovipneumoniae will help understand the pathogenic...
Boxwood phyllosphere fungal and bacterial communities and their differential responses to film-forming anti-desiccants
Anti-desiccant is a class of agrochemicals widely used to protect plants from water stresses, rapid temperature variations, heat and sunburn, frost and freeze damages, transplant shock, and pathogen and pest a...
Structure and ecological function of the soil microbiome associated with ‘Sanghuang’ mushrooms suffering from fungal diseases
The most serious challenges in medicinal ‘Sanghuang’ mushroom production are the fungal diseases caused by various molds. Application of biological agents has been regarded as a potential crop disease manageme...
Clinical characteristics and homology analysis of Staphylococcus aureus from would infection at a tertiary hospital in southern Zhejiang, China
Staphylococcus aureus ( S. aureus) , especially Methicillin resistant S. aureus (MRSA), has been disseminated across communities and hospitals, associated with severe infections and organ failure. In order to under...
Comparative evaluation of RBPT, I-ELISA, and CFT for the diagnosis of brucellosis and PCR detection of Brucella species from Ethiopian sheep, goats, and cattle sera
Brucellosis is an economically devastating animal disease and has public health concern. Serological methods such as Rose Bengal Plate Test (RBPT), Complement Fixation Test (CFT), and Indirect-Enzyme-Linked Im...
Isolation, biological and whole genome characteristics of a Proteus mirabilis bacteriophage strain
Proteus mirabilis , a naturally resistant zoonotic bacterium belonging to the Enterobacteriaceae family, has exhibited an alarming increase in drug resistance. Consequently, there is an urgent need to explore alte...
Investigating the evolution and predicting the future outlook of antimicrobial resistance in sub-saharan Africa using phenotypic data for Klebsiella pneumoniae : a 12-year analysis
Antimicrobial resistance (AMR) is a major public health challenge, particularly in sub-Saharan Africa (SSA). This study aimed to investigate the evolution and predict the future outlook of AMR in SSA over a 12...
Bacterial community analysis identifies Klebsiella pneumoniae as a native symbiotic bacterium in the newborn Protobothrops mucrosquamatus
The study of the native microbiome of organisms is crucial. The connection between the native microbiome and the host affects the formation of the innate immune system and the organism’s growth. However, the n...
Extended-spectrum β -lactamase-producing E. coli from retail meat and workers: genetic diversity, virulotyping, pathotyping and the antimicrobial effect of silver nanoparticles
The spread of extended-spectrum β -lactamases (ESBL) producing E. coli from food animals and the environment to humans has become a significant public health concern. The objectives of this study were to determine...
Identification and pathogenicity analysis of Fusarium spp. on peach in China
Vascular system is affected by diseases that can seriously damage plant health by inducing browning and death of branches. This study aimed to identify and analyze the pathogenicity of Fusarium spp. isolates obta...
Characterization and genomics identification of key genes involved in denitrification-DNRA-nitrification pathway of plant growth-promoting rhizobacteria (Serratia marcescens OK482790)
A wide variety of microorganisms, including bacteria, live in the rhizosphere zone of plants and have an impact on plant development both favorably and adversely. The beneficial outcome is due to the presence ...
Bacteriophage cocktail application for Campylobacter mitigation - from in vitro to in vivo
Effective strategies are urgently needed to control Campylobacteriosis, one of the most important foodborne gastrointestinal diseases worldwide. Administering bacteriophages (phages) is under evaluation as a p...
Biofilm stimulating activity of solanidine and Solasodine in Pseudomonas aeruginosa
Biofilm formation has reported as an important virulence associated properties of Pseudomonas aeruginosa that is regulated by quorum-sensing associated genes. Biofilm and quorum-sensing interfering properties of ...
Synthesis and characterization of TiO 2 nanoparticles combined with geraniol and their synergistic antibacterial activity
The emergence of antibiotic resistance in pathogenic bacteria has become a global threat, encouraging the adoption of efficient and effective alternatives to conventional antibiotics and promoting their use as...
Common antibiotics, azithromycin and amoxicillin, affect gut metagenomics within a household
The microbiome of the human gut serves a role in a number of physiological processes, but can be altered through effects of age, diet, and disturbances such as antibiotics. Several studies have demonstrated th...
Resistance pattern of isolated microorganisms from 783 clinical specimen cultures in patients admitted to Yasuj Educational Hospitals, Iran
Infectious diseases are still one of the leading causes of morbidity and mortality in resource-limited settings. Serious infection caused mostly by gram-negative pathogens causes significant morbidity. Accordi...
Lyme borreliosis diagnosis: state of the art of improvements and innovations
With almost 700 000 estimated cases each year in the United States and Europe, Lyme borreliosis (LB), also called Lyme disease, is the most common tick-borne illness in the world. Transmitted by ticks of the g...
Biofilms and their role on diseases
Biofilms are complex, three-dimensional structures that provide a long-established survival mechanism for microorganisms. Biofilms play a substantial role in pathogenesis as they can evade the immune response ...
Enrichment of human nasopharyngeal bacteriome with bacteria from dust after short-term exposure to indoor environment: a pilot study
Indoor dust particles are an everyday source of human exposure to microorganisms and their inhalation may directly affect the microbiota of the respiratory tract. We aimed to characterize the changes in human ...
Bacterial diversity and community characteristics of the sinus and dental regions in adults with odontogenic sinusitis
The microbiome plays a crucial role in odontogenic sinusitis (OS); however, the bacterial characteristics of the sinuses and connected dental regions in OS are poorly understood. In this study, nasal secretion...
The prevalence of colistin resistance in clinical Stenotrophomonas maltophilia isolates worldwide: a systematic review and meta-analysis
While trimethoprim-sulfamethoxazole (TMP-SMX) is the first-line therapy of Stenotrophomonas maltophilia infections, colistin is one of the therapeutic options in cases of allergy or resistance to TMP-SMX. However...
The potential of Klebsiella and Escherichia-Shigella and amino acids metabolism to monitor patients with postmenopausal osteoporosis in northwest China
Intestinal flora has been proposed to mediate the occurrence of postmenopausal osteoporosis (PMO). However, the mechanism by which microbes and their metabolites interactively promote PMO remains unknown.
Homeostasis of cellular amino acids in Acanthamoeba castellanii exposed to different media under amoeba-bacteria coculture conditions
Acanthamoeba castellanii is a free-living protist that feeds on diverse bacteria. A. castellanii has frequently been utilized in studies on microbial interactions. Grazing bacteria also exhibit diverse effects on...
Exploring the correlation of metabolites changes and microbial succession in solid-state fermentation of Sichuan Sun-dried vinegar
The traditional Sichuan Sun-dried vinegar (SSV) with unique flavor and taste is believed to be generated by the solid-state fermentation craft. However, how microorganisms and their metabolites change along wi...
Study of the gut microbiome in Egyptian patients with Parkinson’s Disease
Recently, an important relationship between Parkinson’s disease and the gut microbiota, through the brain-gut axis interactions, has been established. Previous studies have declared that alterations in the gut...
Propranolol restores susceptibility of XDR Gram-negative pathogens to meropenem and Meropenem combination has been evaluated with either tigecycline or amikacin
Infection with extensive-drug-resistant (XDR) carbapenem-resistant (CR) Gram-negative bacteria (GNB) are viewed as a serious threat to human health because of the limited therapeutic options. This imposes the ...
Types of vegetables shape composition, diversity, and co-occurrence networks of soil bacteria and fungi in karst areas of southwest China
Microorganisms are of significant importance in soil. Yet their association with specific vegetable types remains poorly comprehended. This study investigates the composition of bacterial and fungal communitie...
New silicate-substituted hydroxyapatite materials doped with silver ions as potential antifungal agents
Hydroxyapatites (HAp) are widely used as medical preparations for e.g., bone replacement or teeth implants. Incorporation of various substrates into HAp structures could enhance its biological properties, like...
Characterization and in-depth genome analysis of a halotolerant probiotic bacterium Paenibacillus sp. S-12, a multifarious bacterium isolated from Rauvolfia serpentina
Members of Paenibacillus genus from diverse habitats have attracted great attention due to their multifarious properties. Considering that members of this genus are mostly free-living in soil, we characterized th...
A mutation responsible for impaired detection by the Xpert SARS-CoV-2 assay independently emerged in different lineages during the SARS-CoV-2 pandemic
COVID-19 diagnosis lies on the detection of SARS-CoV-2 on nasopharyngeal specimens by RT-PCR. The Xpert-Xpress SARS-CoV-2 assay provides results in less than one hour from specimen reception, which makes it su...
For editorial board members
- Manuscript editing services
Annual Journal Metrics
2022 Citation Impact 4.2 - 2-year Impact Factor 4.7 - 5-year Impact Factor 1.131 - SNIP (Source Normalized Impact per Paper) 0.937 - SJR (SCImago Journal Rank)
2022 Speed 17 days submission to first editorial decision for all manuscripts (Median) 130 days submission to accept (Median)
2022 Usage 2,545,611 downloads 4,169 Altmetric mentions
- More about our metrics
- Follow us on Twitter
Cybersecurity as a Service
24/7 Threat Detection and Response
- Sophos Managed Detection and Response
Experiencing a Cyberattack?
- Sophos Incident Response Services
Sophos Central Platform
Sophos Global Partner Program
Profitable. Powerful. Adaptive.
Superior cybersecurity outcomes for real-world organizations.
Read the Reviews
Secure your small business.
Enterprise-grade cybersecurity that's cost-effective for small businesses.
- Português, Brasil
Adversary-Sponsored Research Contests on Cybercriminal Forums Focus on New Methods of Attack and Evasion, Sophos Research Reveals
Criminal Community-Sponsored Contests Mirror Cybercrime Trends, Such as Disabling AV/EDR, Cryptocurrency Fraud, and C2 Frameworks
Sophos , a global leader in innovating and delivering cybersecurity as a service, today announced that it has uncovered how research contests run by cybercrime forums are helping to inspire new methods of attack and detection evasion. The contests mirror legitimate security conference ‘Call For Papers’ and provide the winners considerable financial rewards and recognition from peers and also potential jobs. As outlined in Sophos X-Ops latest report, “ For the Win? Offensive Research Contests on Criminal Forums ,” these contests are designed to drive innovation, and when analyzed, the entries provide invaluable insight into how cybercriminals attempt to overcome security obstacles.
Despite the long-standing nature of competitions on criminal forums, they have evolved over the years. Early cybercrime contests involved trivia quizzes, graphic design competitions and guessing games. Now criminal forums are inviting attackers to ‘submit’ articles on technical topics, complete with source code, videos, and/or screenshots. Once submitted, all forum users are invited to vote for the contest winner. However, the judging is not completely transparent as the forum owners and contest sponsors have their own votes in the matter.
“The fact that cybercriminals are running, participating, and even sponsoring these contests, suggests that there is a community goal to advance their tactics and techniques. There is even evidence to suggest that these competitions act as a tool for recruitment amongst prominent threat actor groups,” said Christopher Budd, director of threat research, Sophos. “While our research shows an increased focus on Web-3 related topics such as cryptocurrency, smart contracts and NFTs, many of the winning entries had a broader appeal and could be put to practical use, even if they weren’t particularly novel. This may be reflective of the priorities of the community but could indicate that attackers keep their best research to themselves as they can profit more from using them in real-world attacks.”
Sophos X-Ops explored two prominent annual contests: one run by the Russian-language cybercrime forum Exploit, offering a total prize fund of $80,000 to the winner of its contest in 2021, and another run on the XSS forum, with a prize pool of $40,000 in 2022. For several years, prominent members of the cybercriminal community have sponsored these events, including All World Cards and Lockbit.
In the most recent contests, Exploit themed its competition around cryptocurrencies, while XSS opened its contest up to a range of topics from social engineering and attack vectors to evasion and scam proposals. Many of the winning entries focused on abusing legitimate tools such as Cobalt Strike. One runner-up shared a tutorial on targeting initial coin offerings (ICOs) to raise funds for a new cryptocurrency and another on manipulating privilege tokens to disable Windows Defender.
More information about these cybercrime contests attacks is available in the article “For the Win? Offensive Research Contests on Criminal Forums” on Sophos.com .
Sophos is a worldwide leader and innovator of advanced cybersecurity solutions, including Managed Detection and Response (MDR) and incident response services and a broad portfolio of endpoint, network, email, and cloud security technologies that help organizations defeat cyberattacks. As one of the largest pure-play cybersecurity providers, Sophos defends more than 500,000 organizations and more than 100 million users globally from active adversaries, ransomware, phishing, malware, and more. Sophos’ services and products connect through its cloud-based Sophos Central management console and are powered by Sophos X-Ops, the company’s cross-domain threat intelligence unit. Sophos X-Ops intelligence optimizes the entire Sophos Adaptive Cybersecurity Ecosystem, which includes a centralized data lake that leverages a rich set of open APIs available to customers, partners, developers, and other cybersecurity and information technology vendors. Sophos provides cybersecurity-as-a-service to organizations needing fully-managed, turnkey security solutions. Customers can also manage their cybersecurity directly with Sophos’ security operations platform or use a hybrid approach by supplementing their in-house teams with Sophos’ services, including threat hunting and remediation. Sophos sells through reseller partners and managed service providers (MSPs) worldwide. Sophos is headquartered in Oxford, U.K. More information is available at www.sophos.com .
